Saturday 30 April 2011

The frames

Laboratory frame of reference (wiki)
In physics, the laboratory frame of reference, or lab frame for short, is a frame of reference centered on the laboratory in which the experiment (either real or thought experiment) is done. This is the reference frame in which the laboratory is at rest. Also, this is usually the frame of reference in which measurements are made, since they are presumed (unless stated otherwise) to be made by laboratory instruments. An example of instruments in a lab frame, would be the particle detectors at the detection facility of a particle accelerator.
Center of momentum frame (wiki)
A center of momentum frame (or zero-momentum frame, or COM frame) of a system is any inertial frame in which the center of mass is at rest (has zero velocity). Note that the center of momentum of a system is not a location, but rather defines a particular inertial frame (a velocity and a direction). Thus "center of momentum" already means "center of momentum frame" and is a short form of this phrase. A special case of the center of momentum frame is the center of mass frame: an inertial frame in which the center of mass (which is a physical point) is at the origin at all times. In all COM frames, the center of mass is at rest, but it may not necessarily be at rest at the origin of the coordinate system.
In the centre of momentum frame, the total linear momentum of the system is zero. Also, the total energy of the system is the minimal energy as seen from all possible inertial reference frames. In relativity, COM frame exists for a massive system. In the COM frame the total energy of the system is the "rest energy", and this quantity (when divided by the factor c2) therefore gives the rest mass (positive invariant mass) of the system.
Systems which have energy but zero invariant mass (such as photons moving in a single direction, or equivalently, plane electromagnetic waves) do not have COM frames, because there is no frame which they have zero net momentum. Because of the invariance of the speed of light, such massless systems must travel at the speed of light in any frame, and therefore always possess a net momentum-magnitude which is equal to their energy divided by the speed of light: p = E/c.

Let us note that:
"A “frame of reference” is a standard relative to which motion and rest may be measured; any set of points or objects that are at rest relative to one another enables us, in principle, to describe the relative motions of bodies. A frame of reference is therefore a purely kinematical device, for the geometrical description of motion without regard to the masses or forces involved. A dynamical account of motion leads to the idea of an “inertial frame,” or a reference frame relative to which motions have distinguished dynamical properties. For that reason an inertial frame has to be understood as a spatial reference frame together with some means of measuring time, so that uniform motions can be distinguished from accelerated motions. The laws of Newtonian dynamics provide a simple definition: an inertial frame is a reference-frame with a time-scale, relative to which the motion of a body not subject to forces is always rectilinear and uniform, accelerations are always proportional to and in the direction of applied forces, and applied forces are always met with equal and opposite reactions. It follows that, in an inertial frame, the center of mass of a system of bodies is always at rest or in uniform motion. It also follows that any other frame of reference moving uniformly relative to an inertial frame is also an inertial frame. For example, in Newtonian celestial mechanics, taking the “fixed stars” as a frame of reference, we can determine an (approximately) inertial frame whose center is the center of mass of the solar system; relative to this frame, every acceleration of every planet can be accounted for (approximately) as a gravitational interaction with some other planet in accord with Newton's laws of motion."
da http://plato.stanford.edu/entries/spacetime-iframes/
NOTA BENE: stiamo parlando di un riferimento inerziale, con un sistema di particelle in esso. Non ci devono essere azioni esterne altrimenti non siamo più in un sistema ienrziale.

Il "centro" del sistema solare

Se siete curiosi del sistema solare
IL CENTRO DI MASSA DEL SISTEMA SOLARE e IL SUO MOTO
http://daltonsminima.wordpress.com/2010/07/27/il-centro-di-massa-del-sistema-solare-e-il-suo-moto-dal-ciclo-a-trifoglio-ad-un-ciclo-irregolare-la-via-per-comprendere-i-minimi%C2%A0solari/

Friday 29 April 2011

Orbite chiuse e aperte

In astronomia, un'orbita è la traiettoria di un corpo celeste, di un satellite artificiale o di un veicolo spaziale nello spazio, dove in genere è presente il campo gravitazionale generato da un altro corpo celeste.
In base all'energia posseduta dal corpo le orbite possono essere chiuse e periodiche oppure aperte e non periodiche.
  • Orbita ellittica: l'orbita è chiusa ed è un'ellisse se l'energia totale E del corpo è minore di zero (cioè se l'energia cinetica è minore dell'energia potenziale). Sono ellittiche le orbite dei pianeti del sistema solare e di tutti i loro satelliti. L'orbita circolare è un caso particolare di orbita ellittica.
  • Traiettoria iperbolica: l'orbita è aperta ed è un'iperbole se l'energia totale E del corpo è maggiore di zero (ovvero se l'energia cinetica è maggiore dell'energia potenziale). Sono iperboliche le orbite delle sonde spaziali inviate al di fuori del sistema solare.
  • Traiettoria parabolica: da un punto di vista teorico occorre inoltre aggiungere che se E=0, l'orbita risulterà una parabola; tale orbita rappresenta l'elemento di separazione tra la famiglia di orbite chiuse e di orbite aperte.
Velocità orbitale in un'orbita circolare terrestre
Consideriamo un corpo di massa m che si muove su un'orbita circolare ad una distanza r dal centro della Terra (ovvero ad una quota h = r - RT, dove RT è il raggio della Terra). Tale corpo è soggetto alla forza di gravità
F_g= G \,\frac {{M}{m}}{r^2},
essendo G = 6,672 × 10−11 N (m/kg)² la costante di gravitazione universale e M = 5,9 × 1024 kg la massa della Terra. Il corpo su una traiettoria circolare di raggio r è soggetto alla forza centripeta pari a
F_c= m \frac {v^2}{r}
essendo v la velocità tangenziale.
Perché il corpo continui a percorrere l'orbita circolare, la forza di gravità deve uguagliare la forza centripeta, Fg = Fc:
G \,\frac {{M}{m}}{r^2}=m \frac {v^2}{r};
Semplificando m ed r e risolvendo rispetto a v si ottiene:
v= \sqrt \frac {{G}{M}}{r}.
Tenendo conto che la velocità tangenziale è legata al periodo orbitale dalla relazione
v=2 \pi \frac {r}{T}
è possibile esprimere T in funzione di r, ottenendo
T^2=\frac {{4} {\pi^2}}{GM}\,r^3.
Questa non è altro che la terza legge di Keplero. La costante K che compare nella terza legge è quindi definita da
K =\frac {{4} {\pi^2}}{GM}
La terza legge di Keplero permette quindi di determinare l'altezza di un'orbita geostazionaria, cioè un'orbita equatoriale il cui periodo è pari al giorno siderale della Terra, Trot = 23 h 56 min 4,09 s = 86.164,09 s:
r_{geos} =\sqrt[3] {\frac {G M T_{rot}^2} {4 \pi^2}} = 42.168 \, km
che corrisponde ad un'altezza di 35.790 km sopra l'equatore.
Un'orbita geostazionaria è un'orbita circolare ed equatoriale, situata ad una altezza tale che il periodo di rivoluzione di un satellite che la percorre coincide con il periodo di rotazione della Terra. Tale orbita viene definita 'geostazionaria' in quanto per un osservatore a terra, il satellite appare fermo in cielo, sospeso sempre al di sopra del medesimo punto dell'equatore, muovendosi alla stessa velocità angolare della Terra.
Per pianeti diversi dalla Terra, tale orbita è anche detta isosincrona. Non per tutti i pianeti è possibile che vi sia un'orbita stazionaria, in quanto la loro velocità di rotazione può essere tale da richiedere che il satellite stia in un'orbita troppo vicina oppure troppo lontana per essere stabile.
Si definiscono orbite equatoriali quelle orbite il cui piano orbitale coincide con il piano equatoriale dell'attrattore. Nel caso di orbite equatoriali terrestri, il piano orbitale coinciderà con il piano definito dall'equatore terrestre.
(Adattato da Wiki)

Il- paracadutista


n.15 - motociclista

A motorist drives North for 35 min at 85 km/hr and then stops for 15 minutes. He then continues North, traveling 130 km in 2 hr. What is the total displacement? What is the average velocity?

From A to B : 35 min at 85 km/hr
From B to B : 15 min at rest
From B to C : 2 hr on a distance of 130 km

D = Displacemnet A -- > C = (130+ 35/60 hr x 85 km/hr) = 179 km
Average velocity = D/t = 179 km / (35/60+15/60+2) hr = 63.2 km/hr
In the average velocity, we have the tital time, including also 15/60 hr,  the time spent at rest.




Transparent materials for solar energy

"Researchers in the US have developed a new kind of organic solar cell that converts a small but significant fraction of the sunlight that falls onto it into electricity, while still allowing most of the visible part of that light to pass through. Thanks to this transparency, the team says that the cell could be mounted onto windows in buildings or cars in order to tap a currently under-exploited source of energy."
Transparent material opens a new window on solar energy - physicsworld.com

Noether's (first) theorem

"Noether's (first) theorem states that any differentiable symmetry of the action of a physical system has a corresponding conservation law. The theorem was proved by German mathematician Emmy Noether in 1915 and published in 1918.[1] The action of a physical system is the integral over time of a Lagrangian function (which may or may not be an integral over space of a Lagrangian density function), from which the system's behavior can be determined by the principle of least action.
Noether's theorem has become a fundamental tool of modern theoretical physics and the calculus of variations. A generalization of the seminal formulations on constants of motion in Lagrangian and Hamiltonian mechanics (1788 and 1833, respectively), it does not apply to systems that cannot be modeled with a Lagrangian; for example,dissipative systems with continuous symmetries need not have a corresponding conservation law." Wikipedia, l'enciclopedia libera.

n.7 - campo elettrico

Spherical symmetry

Everything is the same in all directions (as if on the surface of a sphere).


Da un libro sulle simmetrie

n.6 - campo elettrico

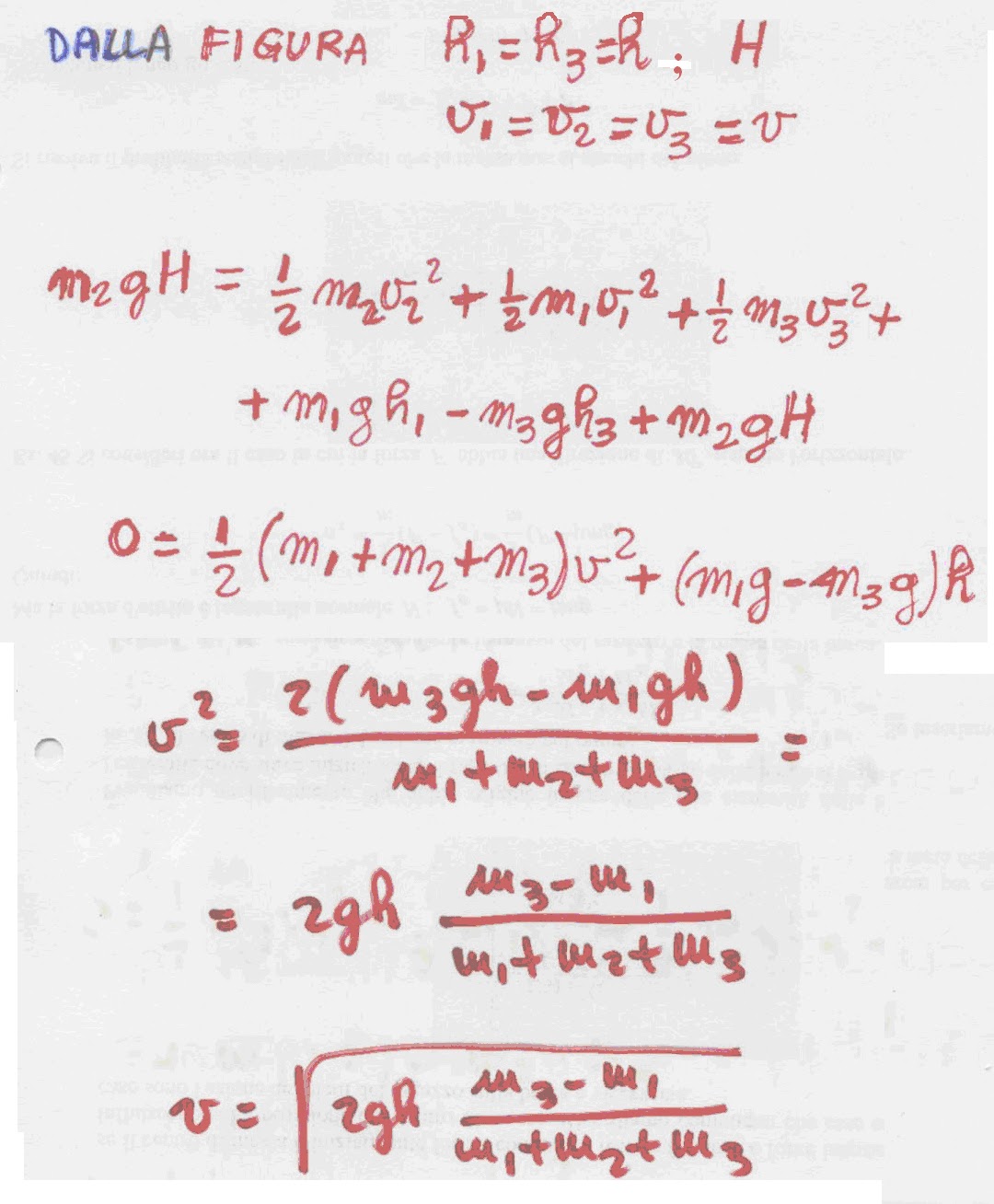

n.1 - energia




n.7 - energia


n.2 - energia


Thursday 28 April 2011

Piani inclinati

A è uno schema che contiene i diagrammi di corpo libero delle due masse m1 e m2.
B è il diagramma di corpo libero del blocco M.
N è la reazione del tavolo che ovviamente deve sopportare il peso di tutte le tre masse.

n.8 - dinamica

Le forze f2 e N2 sono l'interazione tra il blocco 2 e il blocco1.

n.7 - attriti

n.3 - attriti

n.26 - il rotor


Il rotor del parco di divertimenti.

Rocket

Simulazione del razzo
http://www.ba.infn.it/~palano/chimica/book/it/Chap_5/sec_3/razzo.html

Cannon-ball

Simulazione del cannone
http://www.ba.infn.it/~palano/chimica/book/it/Chap_5/sec_2/cannone.html

Monday 11 April 2011

SNEWS

When a red giant star collaps on itself a burst of neutrinos is produced. This occurs before that light is emitted in the explosion, The SuperNova Early Warning System (SNEWS) is a network of neutrino detectors designed to give an early warning to astronomers of a supernova event in the Milky Way. The neutrino pulse from supernova 1987A was detected 3 hours before the photons.
The current members of SNEWS are Borexino, Super-Kamiokande, LVD, SNO and IceCube.
http://en.wikipedia.org/wiki/Supernova_Early_Warning_System

Neutrinos in IceCube

The IceCube Neutrino Observatory (or simply IceCube) is a neutrino telescope constructed at the Amundsen-Scott South Pole Station in Antarctica. Similar to its predecessor, the Antarctic Muon And Neutrino Detector Array (AMANDA), IceCube contains thousands of spherical optical sensors called Digital Optical Modules (DOMs), each with a photomultiplier tube (PMT) and a single board data acquisition computer which sends digital data to the counting house on the surface above the array. More http://en.wikipedia.org/wiki/IceCube_Neutrino_Observatory
"IceCube, which was completed in December 2010, is a kilometer-cubed array of photodetectors that have been drilled down into the Antarctic ice cap... The IceCube team compared 13 months of their data (collected when the array was half finished) to observations of 117 Gamma-Ray Bursts measured independently over the same time period. Contrary to expectations, no high-energy neutrinos were detected within a half-hour of each GRB. Theorists may need to rethink their models of GRBs, as well as look for other possible sources for the highest energy cosmic rays." This is what Michael Schirber writes in
http://physics.aps.org/synopsis-for/10.1103/PhysRevLett.106.141101

Artificial leaf

"Photosynthesis, nature's way of converting sunlight to fuel, happens all around us, from leaves on a tree to the smallest blade of grass. But finding a way to mimic the ability cheaply and efficiently has confounded engineers for decades.Now researchers have taken a step toward this elusive feat, with a device that is even more efficient than natural photosynthesis and relies on low-cost, abundant materials.
Conventional solar cells produce electricity when a photovoltaic material is exposed to light. The new device goes a step further, using the resulting electricity to split water into hydrogen and oxygen, which can be stored and used to generate electricity via a fuel cell."
More http://www.technologyreview.com/energy/37310/?p1=MstRcnt

Friday 8 April 2011

Tevatron claims glimpse of particles beyond standard model

Tevatron claims possible glimpse of particles beyond the standard model - April 06, 2011
"Just as the Tevatron, the proton-antiproton collider at Fermilab in Batavia, Illinois, enters its final months of operations, possible signals of new physics are emerging. First came a report from the Collider Detector at Fermilab (CDF) experiment of a puzzling asymmetry in the way top quarks decay into lighter particles. Now the same experiment is reporting on the possible observation of particles beyond the standard model in collisions that produce a W boson – a particle of the weak nuclear force. Spokesmen for the experiment say the signal may be due to random fluctuations, but that it’s nonetheless causing some excitement. “Either what we thought we knew about this process is wrong or there’s a totally new effect,” says Giovanni Punzi, CDF co-spokesman."
More Nature.com

Impedenza meccanica

L'oscillatore armonico semplice è determinato dall'equazione del moto: m a(t) + k x(t) = 0, che descrive il moto prodotto da una forza di richiamo elastica proporzionale allo spostamento della massa m dall'origine delle coordinate. a(t) indica l'accelerazione istantanea. La legge di questo moto è:

x(t)=A cos (ωot + φ)

dove ωo = √(k/m)  è la frequenza propria dell'oscillazione libera, mentre A e φ sono due costanti che dipendono dalle condizioni iniziali del moto. Siamo ora  interessati all'oscillatore forzato, che è un oscillatore armonico al quale si applica, oltre alla forza elastica, anche una forza esterna, armonica anch'essa, di frequenza arbitraria. L'equazione del moto diviene

m a(t) + k x(t) = F(t)

dove  F(t)=Fo cos(ωt), è appunto la forza esterna.
Una grandezza fisica interessante è l’impedenza meccanica dell'oscillatore. L'impedenza meccanica del sistema è il rapporto tra la forza applicata alla particella  e la velocità della particella stessa. Nel sistema mks si misura in ohm meccanici (kg/s). L'impedenza meccanica dell'oscillatore è il rapporto tra la forza F(t) esercitata sulla massa oscillante, e la velocità v(t) della massa stessa. Per calcolarla assumiamo che il moto risultante sia ancora un moto armonico, e sostituiamo nell'equazione del moto la soluzione di prova:

x(t)=A cos (ωt)

Otteniamo l'equazione

(-m ω2+k) A cos (ωt) = Fo cos(ωt),

da cui otteniamo l'ampiezza del moto risultante in funzione dell'ampiezza Fo della forza applicata, e della pulsazione:
Ora si ricava la velocità:

v(t)= − ωA(ω) sin (ωt)

La forza e velocità non sono in fase tra loro. La forza è una funzione cos, la velocità è invece una funzione sin, il che significa c’è tra di loro uno sfasamento di ±90° . Da  questo esempio è chiaro che ci sono due effetti: una variazione dell’ampiezza in funzione della pulsazione ed  uno sfasamento tra forza applicata e velocità della massa. Determinato lo sfasamento, possiamo determinare l'impedenza meccanica Z considerando il rapporto tra i valori massimi in modulo di forza F e velocità v:


A pulsazioni basse, l'impedenza dell'oscillatore è dominata dalla sua rigidità k, mentre l'inerzia m è poco rilevante, mentre alle alte frequenze la massa dell'oscillatore diventa la caratteristica dominante sul moto, mentre la rigidità influisce poco. La regione attorno ad ω0 dove le due proprietà divengono egualmente importanti è la regione in cui si ha una risonanza. La risonanza corrisponde ad un minimo dell'impedenza, e cioè al punto in cui l'oscillatore oppone la minima resistenza alla forza esterna che lo mantiene in moto.
Studiando l'ampiezza dell'oscillazione come funzione della pulsazione della forza esterna appaiono immediate alcune considerazioni.



a) Data l'intensità della forza esterna, l'ampiezza delle oscillazioni è tanto maggiore quanto più la pulsazione della forza esterna ω è vicina alla pulsazione propria ω0 dell'oscillatore.
b) Pulsazioni molto maggiori o molto minori di ω0 tendono a ridurre l'ampiezza delle oscillazioni.
c) Per pulsazioni prossime ad ω0 avviene un fenomeno legato all’energia. L'energia della sorgente esterna si trasferisce in modo sempre più efficiente all'oscillatore, accumulandosi di periodo in periodo provocando oscillazioni sempre maggiori.
d) A ω = ω0 le oscillazioni diventano di ampiezza infinita. Nella realtà ciò non accade perché ci sono fenomeni di smorzamento.

Thursday 7 April 2011

Einstein secret

James Dacey (physicsworld) is blogging on a new iconic image of Einstein, creation of Spanish artist Juan Osbourne. It is a game to find some hidden numbers. Play the game at
http://www.juanosborne.com/2010/01/playing-with-einstein/


Created by Juan Osborne (under this Creative Commons License)
This is an image from a beautiful collection

The hunt for the elusive Higgs


"Physicists at CERN's Large Hadron Collider (LHC) are confident that they can find the Higgs boson by the end of 2012, when the machine will be shut down temporarily...The most sought after particle in particle physics – the Higgs boson – is believed to endow all other particles with mass. It is also the last undiscovered component of particle physicists' great theoretical framework – the Standard Model. After decades searching for the Higgs in particle collisions at CERN, and at Fermilab in the US, researchers at the LHC believe they may finally have the elusive particle within their grasp."
The hunt for the elusive Higgs - physicsworld.com

Thin film has 'astonishing' ability to rotate light

"Physicists in Austria and Germany have taken the Faraday effect to a new extreme by rotating the polarization of light by 45° by passing it through an extremely thin film. This "giant Faraday effect" could someday be used to create optical transistors that switch light or to improve terahertz imaging systems."
Thin film has 'astonishing' ability to rotate light - physicsworld.com

Simulatori oscillazioni

Alla pagina http://staff.polito.it/amelia.sparavigna/Oscillatori/ trovate due programmi che simulano l'oscillatore smorzato e l'oscillatore smorzato forzato. I parametri da inserire sono omega naturale, beta/m, Fo/m, omega forzante. Poi si devono dare la posizione iniziale del punto e la sua velocità iniziale. Infine il tempo di simulazione. Quando si inseriscono i dati, si deve usare il punto prima delle cifre decimali, per esempio 1.5 e non 1,5.
Il programma Oscill-smorzato scrive due file: uno contiene la posizione x in funzione del tempo t per l'oscillatore smorzato, l'altro la funzione senza smorzamento.
Il programma Oscill-forzato-smorzato scrive due file: uno contiene la posizione x in funzione del tempo per l'oscillazione forzata smorzata, l'altro la funzione forzante.
Tramite un programma di grafica (gnuplot per esempio) si possono visualizzare i files come grafici.
Si consiglia di scaricare i programm in una apposita cartella dove eseguirli e raccogliere i file in uscita.

Le immagini seguenti mostrano lo snapshot del programma e del grafico

Caso oscillatore smorzato


Caso oscillatore forzato smorzato


Per cominciare, usate i dati che vedete sui snapshot.

problema sul momento

Dimostrate che i prodotti esterni OA F, OH x F e OD x F sono uguali. Vedi figura per i vettori.


Calcoliano OA x F. Consideriamo OA = OH + HA, quindi

OA x F = (OH + HA) x F = OH x F   poiché HA e F sono paralleli

Calcoliamo ora OD x F. Consideriamo OD = OH + HD, quindi

OD x F = (OH + HD) x F = OH x F   poiché HD e F sono paralleli

Sfasamento

Esempio di sfasamenti




Wednesday 6 April 2011

Formule trigonometriche di addizione

Per vedere l'utilità dei numeri complessi, ricaviamo le formule trigonometriche di addizione, nel seguente modo.

ECLIPSING BINARY STARS

"Eclipsing binary stars are just one several types of variable stars. These stars appear as a single point of light to an observer, but based on its brightness variation and spectroscopic observations we can say for certain that the single point of light is actually two stars in close orbit around one another. The variations in light intensity from eclipsing binary stars is caused by one star passing in front of the other relative to an observer. If we assume that the stars are spherical and that they have circular orbits, then we can easily approximate how the light varies as a function of time for eclipsing binary stars. These calculations can be performed in a relatively short computer program."
http://www.physics.sfasu.edu/astro/ebstar/ebstar.html

Stelle doppie- Problema a due corpi

Domanda molto interessante di uno studente sul moto delle stelle doppie. Per discuterlo in dettaglio, dobbiamo avere alcune nozioni che ancora ci mancano, Una bella discussione è fatta  da Wiki
http://en.wikipedia.org/wiki/Two-body_problem
Il sito mostra alcuni filmati col moto di sistemi binari con diverse masse.


Se cliccate sulla figura, si vede l'animazione

Le due stelle hanno la loro orbita ellittica attorno alla croce rossa che rappresenta la posizione del centro di massa del sistema.

Tuesday 5 April 2011

Inertial frames of reference

Inertial frame of reference, adapted from Wikipedia, the free encyclopedia

In physics, an inertial frame of reference (also inertial reference frame or inertial frame or Galilean reference frame) is a frame of reference that describes time and homogeneously and isotropically, and in a time independent manner. All inertial frames are in a state of constant, rectilinear motion with respect to one another; they are not accelerating.
Measurements in one inertial frame can be converted to measurements in another by a simple transformation (the Galilean transformation in Newtonian physics and the Lorentz transformation in special relativity). Physical laws take the same form in all inertial frames. In a non-inertial reference frame the laws of physics depend upon the acceleration of that frame of reference, and the usual physical forces must be supplemented by fictitious forces.
The motion of a body can only be described relative to something else - other bodies, observers, or a set of space-time coordinates. These are called frames of reference. If the coordinates are chosen badly, the laws of motion may be more complex than necessary. For example, suppose a free body (one having no external forces on it) is at rest at some instant. In many coordinate systems, it would begin to move at the next instant, even though there are no forces on it. However, a frame of reference can always be chosen in which it remains stationary.
An intuitive summary of inertial frames can be given as: In an inertial reference frame, the laws of mechanics take their simplest form.òIn an inertial frame, Newton's first law (the law of inertia) is satisfied: Any free motion has a constant magnitude and direction.Newton's second law for a particle takes the form:

F = m a

with F the net force (a vector), m the mass of a particle and a the acceleration of the particle (also a vector) which would be measured by an observer at rest in the frame. The force F is the vector sum of all "real" forces on the particle, such as electromagnetic, gravitational, nuclear and so forth. In contrast, Newton's second law in a rotating frame of reference, rotating at angular rate Ω about an axis, takes the form:

F' = m a'

which looks the same as in an inertial frame, but now the force F′ is the resultant of not only F, but also additional terms:

F' = F - 2m Ω x v'-m Ω x (Ω  x r')

where the angular rotation of the frame is expressed by the vector Ω pointing in the direction of the axis of rotation, and with magnitude equal to the angular rate of rotation Ω, symbol  x denotes the vector cross product, vector r' locates the body and vector v' is the velocity of the body according to a rotating observer (different from the velocity seen by the inertial observer). We assume  for the sake of simplicity that the angular velocity  is constant in magnitude and direction.
The extra terms in the force F′ are the "fictitious" forces for this frame. (The first extra term is the Coriolis force, the second the centrifugal force). These terms all have these properties: they vanish when Ω = 0; that is, they are zero for an inertial frame (which, of course, does not rotate).
All observers agree on the real forces, F; only non-inertial observers need fictitious forces. The laws of physics in the inertial frame are simpler because unnecessary forces are not present.
In Newton's time the fixed stars were invoked as a reference frame, supposedly at rest relative to absolute space. In reference frames that were either at rest with respect to the fixed stars or in uniform translation relative to these stars, Newton's laws of motion were supposed to hold. In contrast, in frames accelerating with respect to the fixed stars, an important case being frames rotating relative to the fixed stars, the laws of motion did not hold in their simplest form, but had to be supplemented by the addition of fictitious forces, for example, the Coriolis force and the centrifugal force.
 The concept of inertial frames of reference is no longer tied to either the fixed stars or to absolute space.
Rather, the identification of an inertial frame is based upon the simplicity of the laws of physics in the frame. In particular, the absence of fictitious forces is their identifying property.

Un esempio su Coriolis

Un esempio  fatto con giostra e caramelle sugli effetti di Coriolis al sito
http://www.accademiavelica.it/IT/documentazione/_coriolis/coriolis.2/node2.html

Monday 4 April 2011

Laboratorio - 4 Aprile

Misura della radioattivita' del fondo naturale con il Geiger. Misura della radioattivita' del KCl. Utilizzo dei fogli Excel per l'analisi dei dati. Istogrammi.

Friday 1 April 2011

Il sogno di Leonardo

"A research team at Festo has developed SmartBird, a biomechatronic bird that can take off, fly and land autonomously. Festo claims that SmartBird flies, glides and moves through the air like its counterpart in nature — the herring gull — with no additional drive mechanism."

Vita media ed emivita

La radioattività, o decadimento radioattivo, è un insieme di processi fisico-atomici tramite i quali, alcuni nuclei atomici instabili (radionuclidi) o radioattivi decadono, trasmutano in una specie atomica a contenuto energetico inferiore secondo la legge di conservazione della massa/energia e raggiungendo così uno stato di maggiore stabilità.

Equazione del decadimento esponenziale
Data una quantità il cui valore è
 N, il decadimento esponenziale è espresso dall'equazione:


 λ è un numero detto costante di decadimento. La soluzione di questa equazione è


N(t) è la quantità al tempo t, e N0 = N(0) è la quantità iniziale, al tempo t=0.
In alternativa si può scrivere

dove:

è detta costante di tempo ed è il tempo necessario a ridurre la quantità iniziale di circa il 63,21%.
Il momento esatto in cui un atomo instabile decadrà in uno più stabile è assolutamente casuale e impredicibile. Ciò che si può fare, dato un campione di un particolare isotopo, è notare che il numero di decadimenti rispetta una precisa legge statistica. Il numero di decadimenti che ci si aspetta avvenga in un intervallo dt è proporzionale al numero N di atomi presenti. Questa legge può essere descritta tramite l'equazione del decadimento esponenziale. Oltre alla costante di decadimento λ, il decadimento radioattivo è caratterizzato da un'altra costante chiamata vita media. Ogni atomo vive per un tempo preciso prima di decadere e la vita media rappresenta appunto la media aritmetica sui tempi di vita di tutti gli atomi della stessa specie. La vita media viene rappresentata dal simbolo τ , legato a λ dalla:


che è la costante di tempo.
Un altro parametro molto usato per descrivere un decadimento radioattivo è dato dalla emivita o tempo di dimezzamento t1/2. Dato un campione di un particolare radionuclide, il tempo di dimezzamento ci dice dopo quanto tempo saranno decaduti un numero di atomi pari alla metà del totale, ed è legato alla vita media dalla relazione:
.

URANIO



CESIO
